Shielded Cables

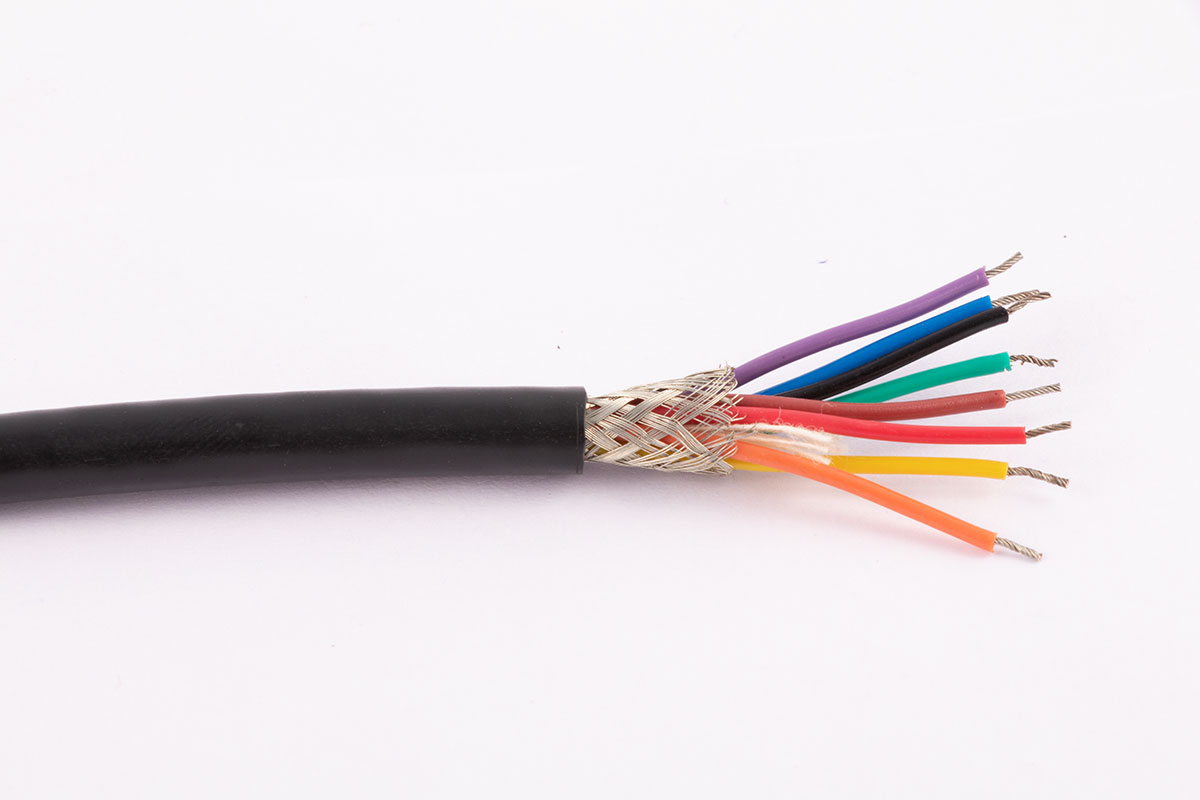

Shielded / Screened Wires & Cables

  • PVC Insulated. Shielded & Sheathed Cables.
  • Astronics annealed tinned/ Bare copper shielding or lapping prevents electrost.
Conductor size Area in sq.mm Current carrying capacity (amps) Volts
In swg In mm
7/38 7/.15 0.12 0.8 250/440
7/36 7/.193 0.20 1.0 250/440
14/36 14/.193 0.40 3.0 250/440
23/36 23/.193 0.67 6.0 250/440

Number of cores in various sizes:

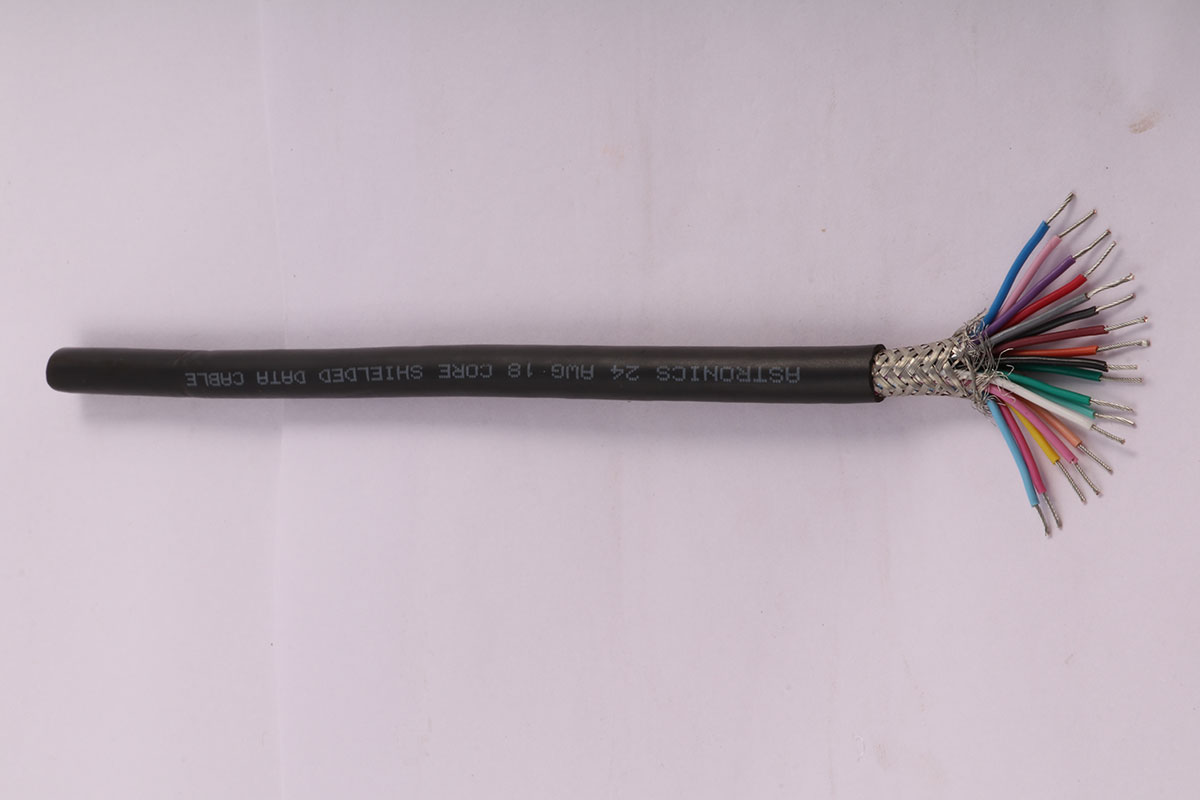

  1. 7/38 : 1,2,3,4,5,6,7,8,9,10,12,16,18,20.25.
  2. 7/36: 1,2,4,5,6,8,9,10,12,16,19,27,37.

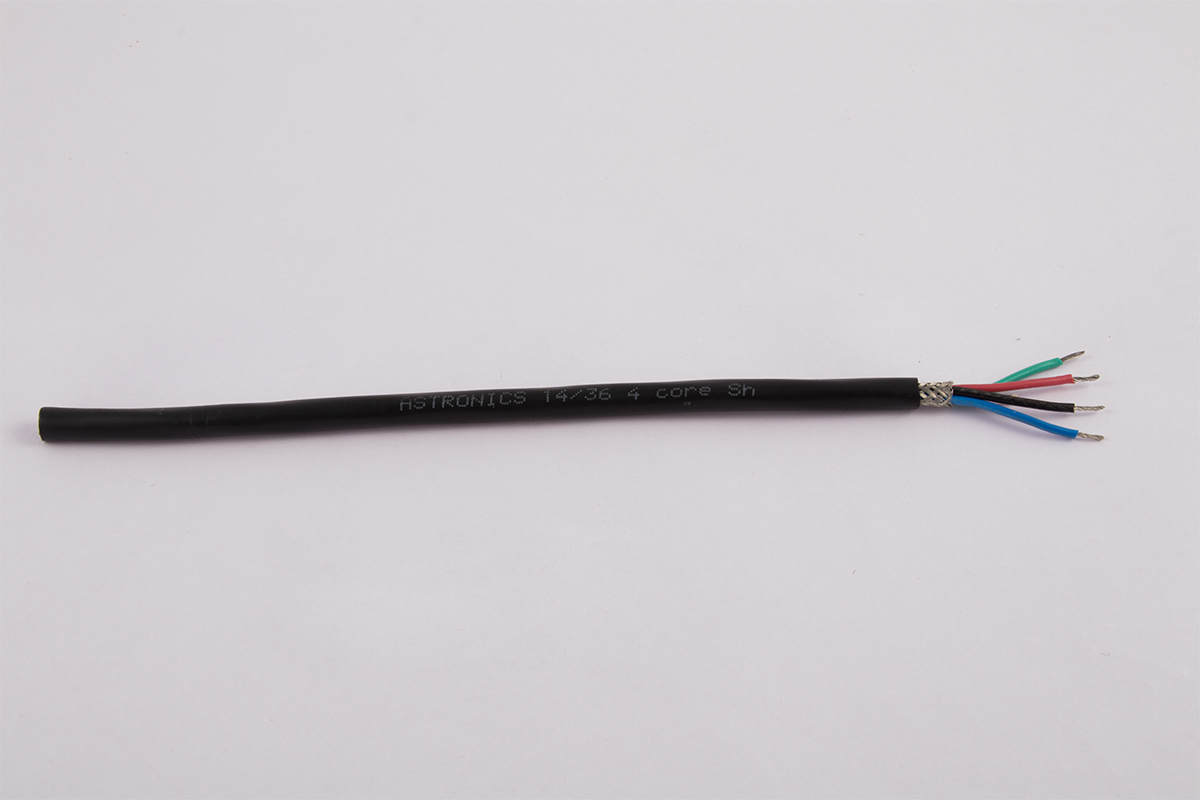

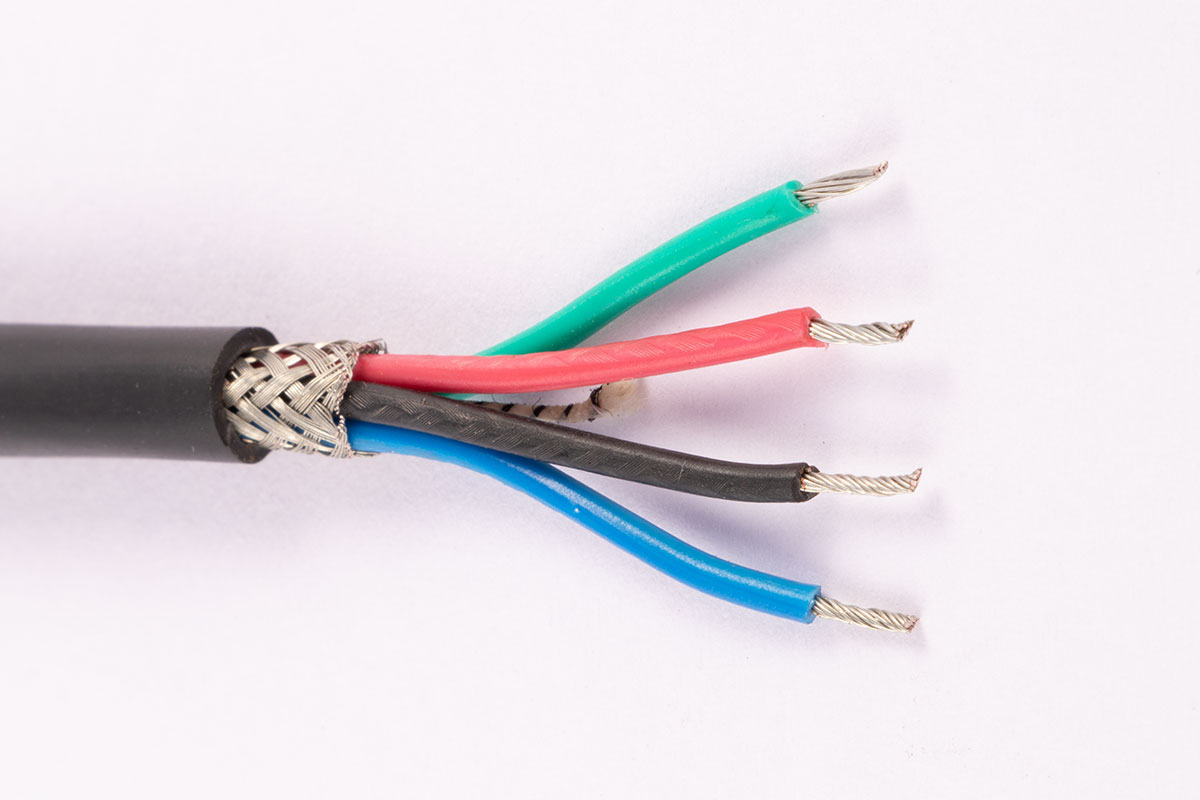

  3. 14/36: 1,2,3,4,6,8,10,12,16,19,27,37.
  4. 23/36: 1,2,3,4,5,6
  5. 32/36: 2,3,4,5,6.
  6. 40/36: 2,3,4,6

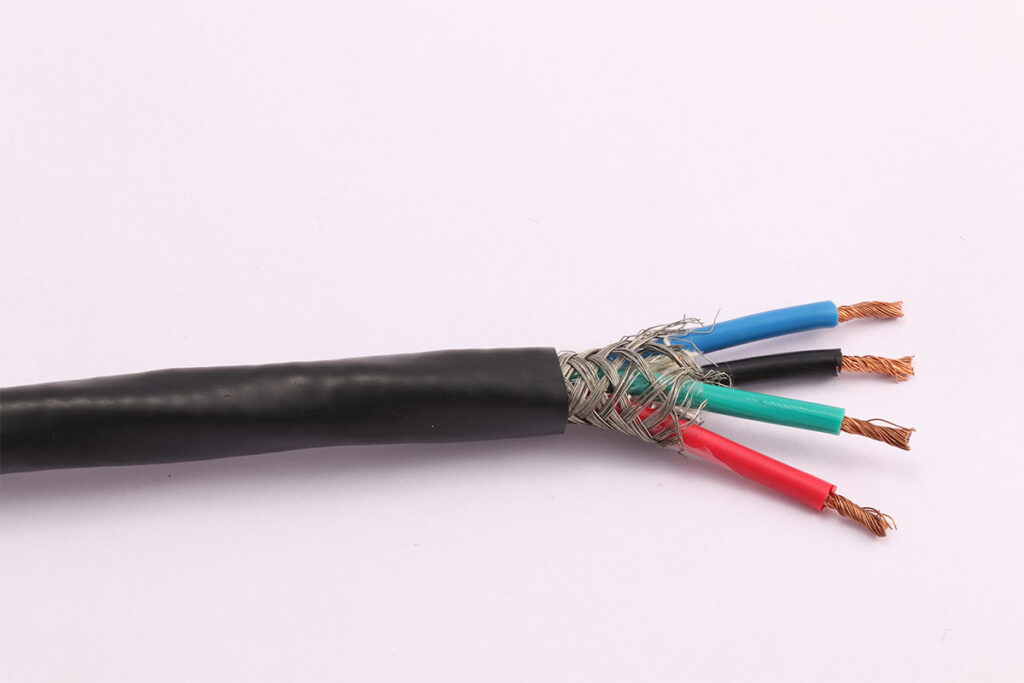

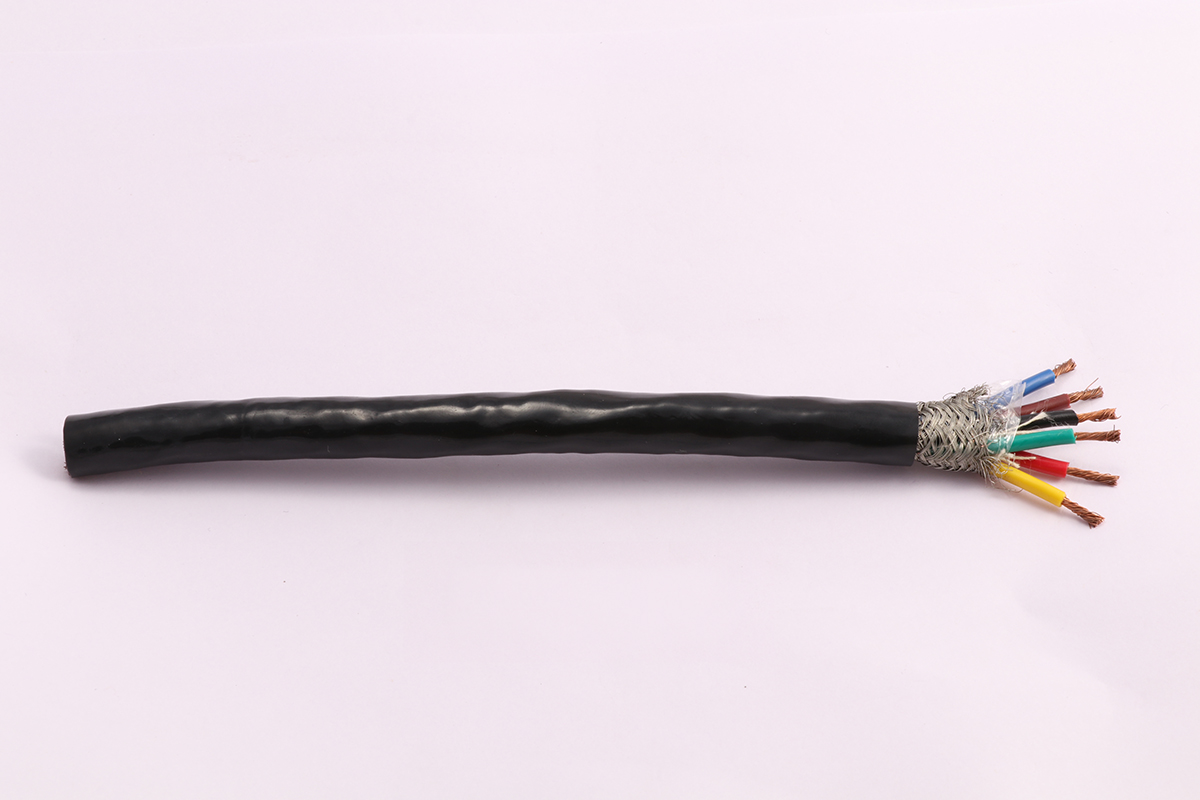

  7. 48/36: 2,3,4,6.
  8. 80/36: 2,3,4,6.

Application:
Measuring, testing and regulating equipment, audio equipment, industrial television systems, studio wiring, ship direction-finding systems, signalling, safety, and other electrical and electronic equipment and systems.

Colour of Sheath:
Black or grey.

Colour of Insulation:
All insulated conductors have separate colour coding for clear identification.
