Co-axial Cabels

Astronics co-axial cables are specially designed to transmit signals with minimum loss and little or no distortion. To accomplish this, core insulation, Shield construction and jacket material are carefully selected, and precise dimensional control is exercised during manufacturing.

Characteristic Impedance 50-55 Ohms

Items	Conductor size		Dial over		Jacket OD		CAPACITANCE (Pt/mt)	Impedance (ohms)	Max R.F Operating (K.V.)	Attenuation (db/100mt, 200 Mhz)
	Inch	mm	Dielectric		Nominal values
			Dielectric		inch	mm
			Inch	mm	inch	mm

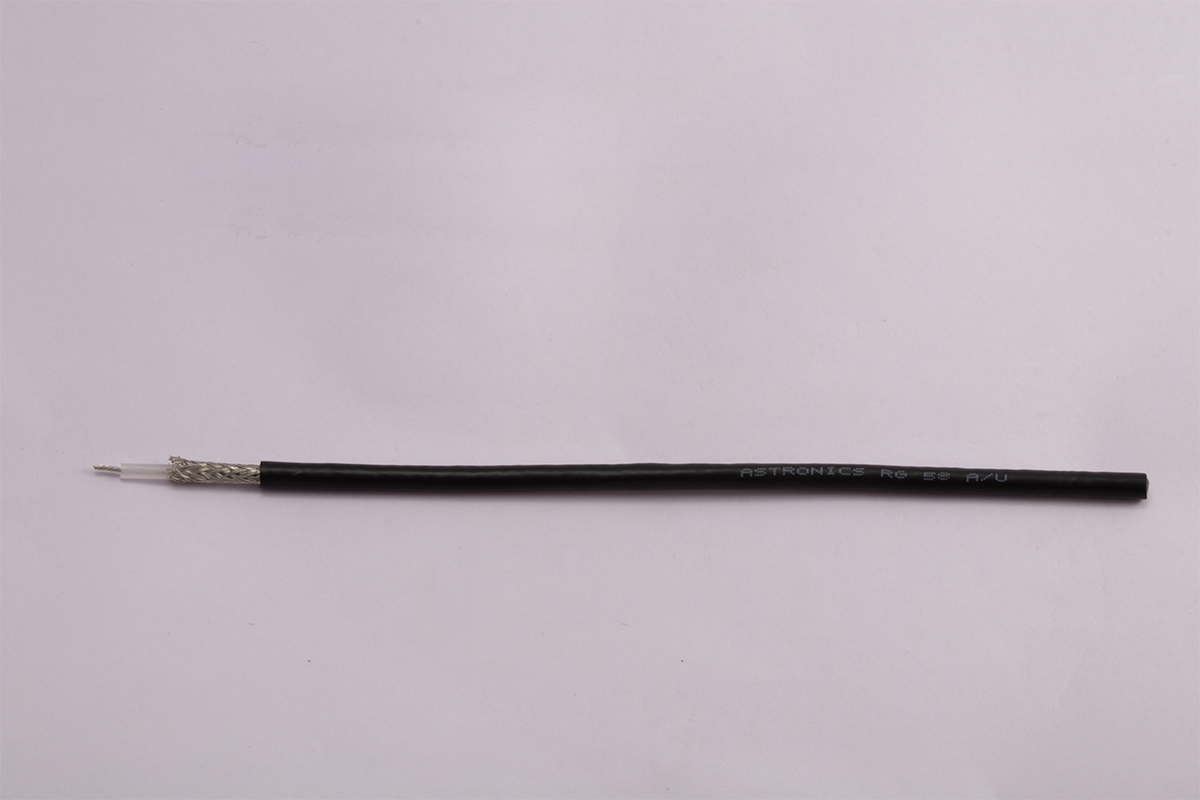

RG 58 A /U	19/0.0071	19/0.81T	.116	2.95P	0.197	5.0V	97	50	1.9 rms	30
RG 174 U	7/0.0063	7/0.16T	.60	1.50P	0.107	2.7NMV	97	50	1.5 rms	40

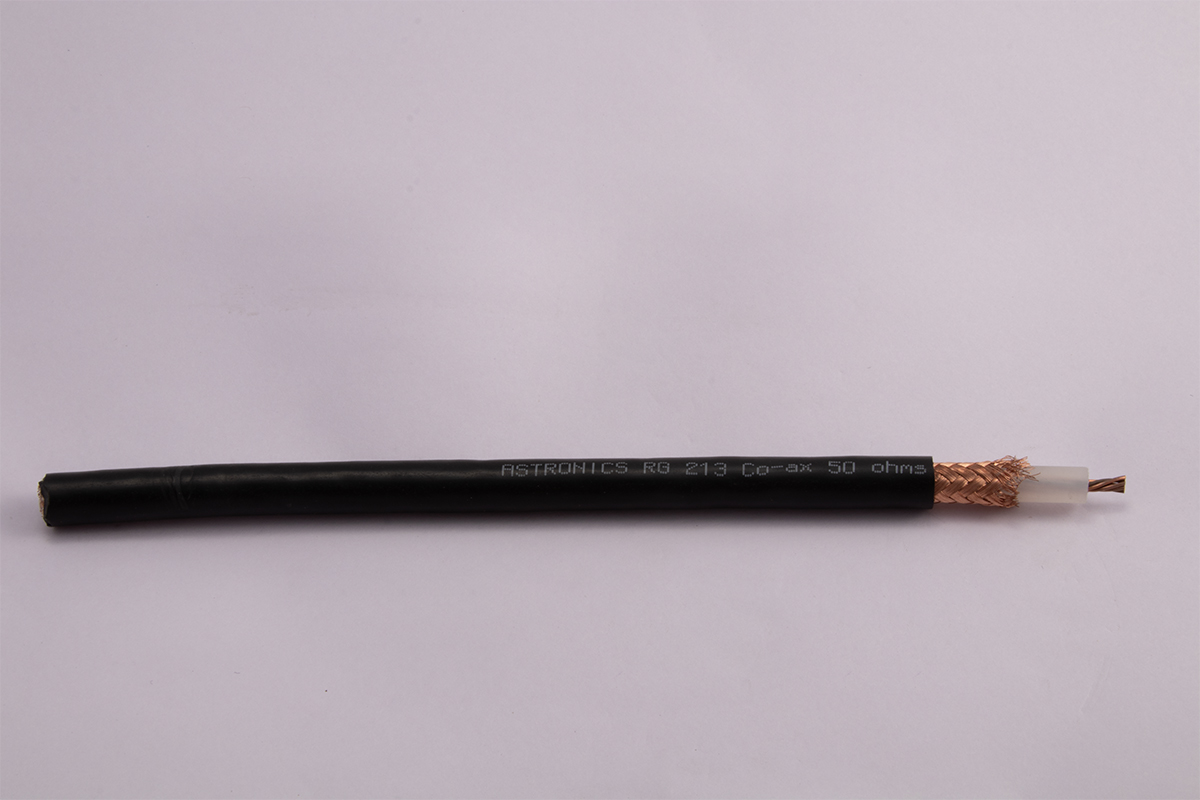

RG213U	7/0.296	7/0.75C	.285	7.25 P	0.405	10.3NMV	97	50	5.0 rms	9

Characteristic Impedance 70-75 Ohms

Items	Conductor size		Dial over		Jacket OD		CAPACITANCE (Pt/mt)	Impedance (ohms)	Max R.F Operating (K.V)	Attenuation (db/100mt, 200 Mhz)
	Inch	mm	Dielectric		Nominal values
	Inch	mm	Inch	mm	inch	mm

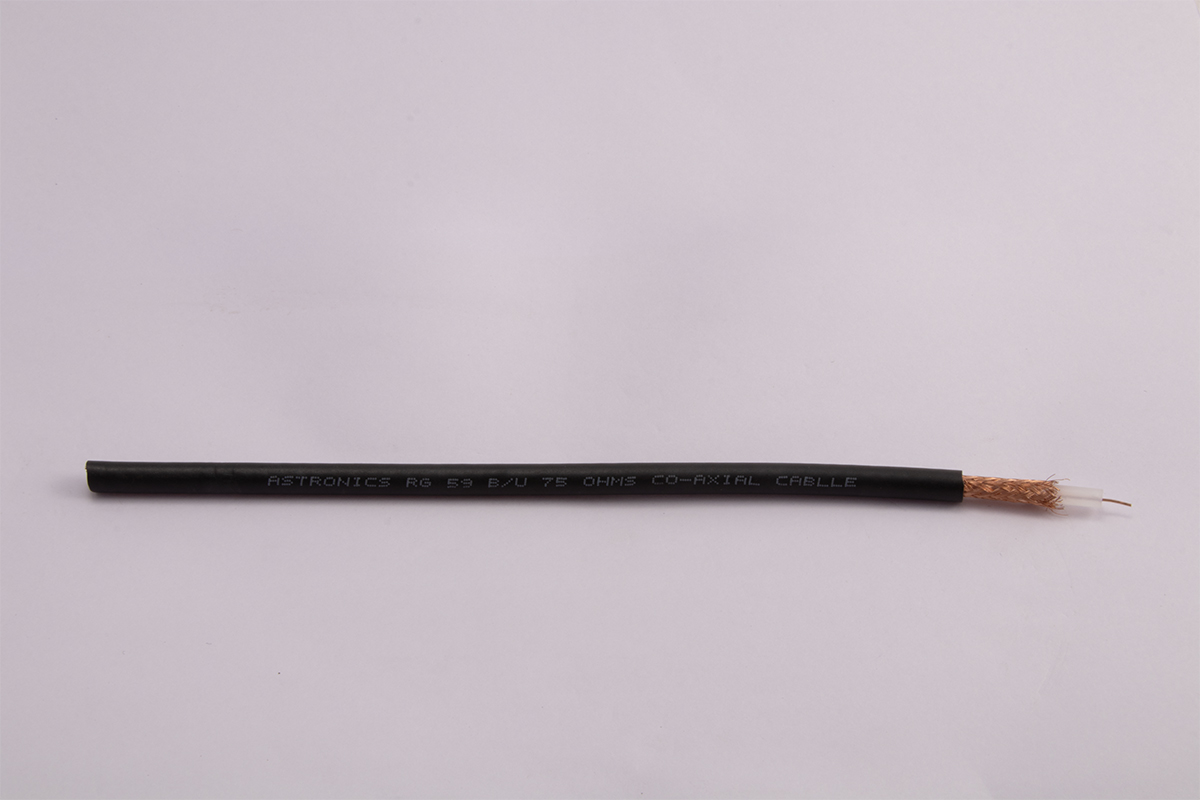

RG 59 B/U	.023	0.60C	.145	3.70P	240	6.1NMV	69	75	2.3 rms	16

C-copper T: Tinned copper P: Polyethylene V: PVC NMV: Non-migratory PVC

Application:

In equipment & systems for transmission and reception purposes, for missiles and satellite guidance, radar equipment, microware transmission, telecommunications, Ship, CCTV, direction finding systems, signalling and other

Colour of Sheath: Black

Available in:

RG-58 ,RG-59, RG-174, RG-213
